Stochastic Currency Strength Dashboard

Compare Stochastic readings across forex pairs and timeframes in MT4. Adjust K, D and slowing, and inspect recent values in a free dashboard.

What the values mean

Stochastic describes the position of the close within the recent high-low range. This dashboard displays the main Stochastic line on a 0 to 100 scale across symbols and timeframes. Values near 100 are near the upper end of the range; values near 0 are near the lower end.

Settings and interpretation

The defaults are K period 5, D period 3 and slowing 3, using the high-low price range and simple averaging. K sets the lookback range; slowing smooths the main line; D sets the signal-line averaging period. The dashboard displays the main line, rather than a main/signal crossover.

The default upper/lower levels are 70/30. Their labels in the released Inputs dialog are reversed, so check the numeric values. A high or low reading describes range position, not a guaranteed turning point. Current-bar readings can change.

Main features

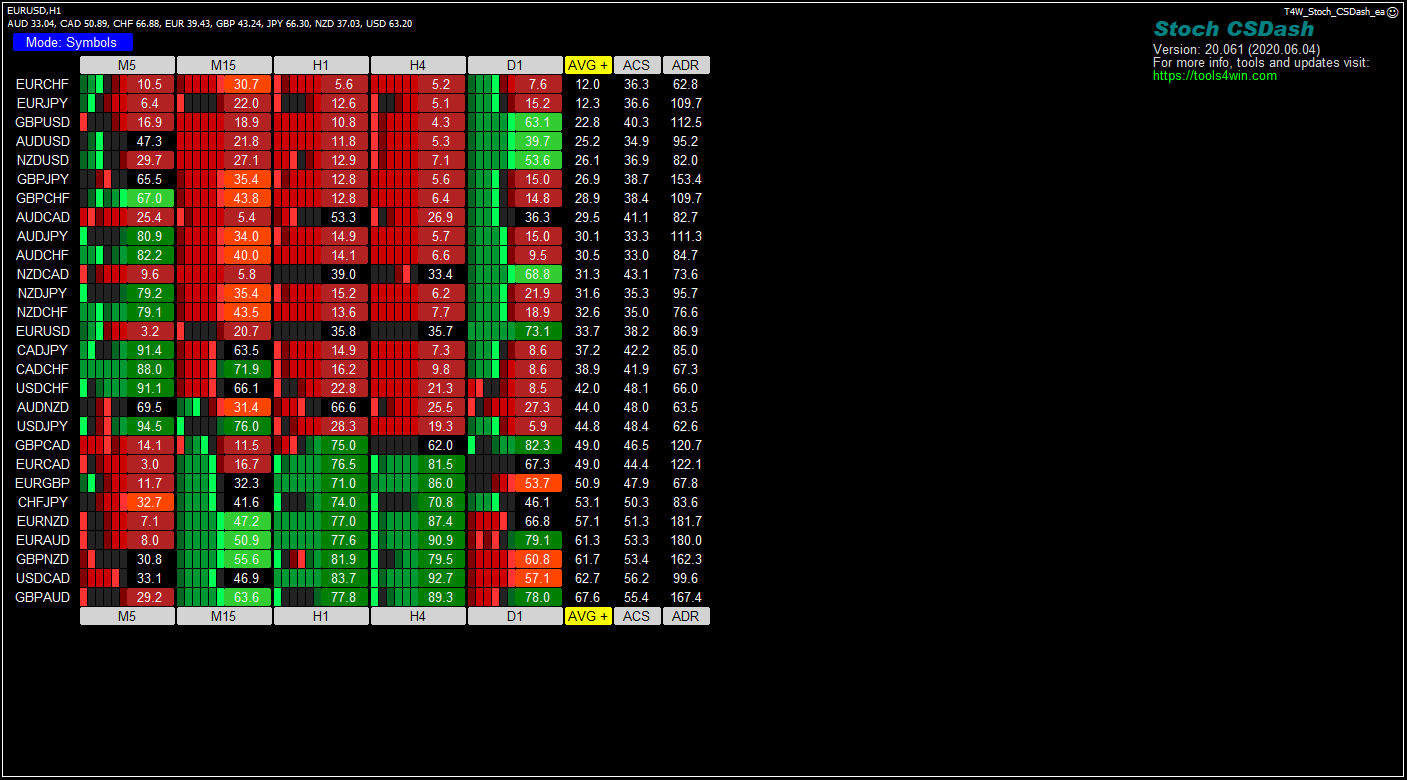

• Main Stochastic readings across symbols and timeframes.
• Configurable K, D, slowing and upper/lower levels.

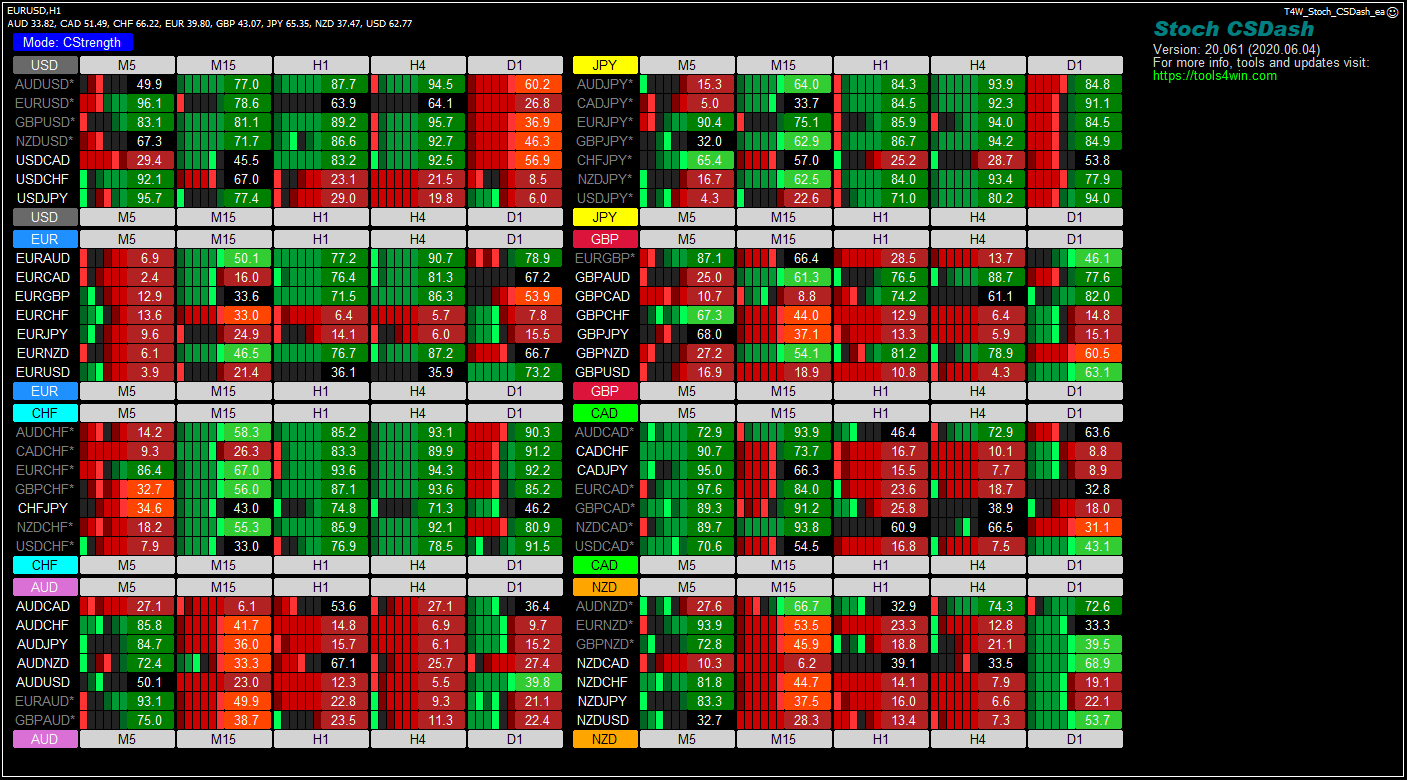

• Currency and symbol views with recent-value strips.
• Click a value to inspect the corresponding chart.
